Large Size Wall Formwork System with H20 Timber Beam Film Faced Plywood Steel Waler

Minimum Order Quantity : 2000 Sqm Packaging Details : Pallet
Delivery Time : 20-25 Work days Payment Terms : L/C, T/T
Supply Ability : 1000000 Sqm / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Wall formwork

Detail Information

Material: Q 235 Steel ; Q 345 ; Wood Size: Customized
Surface: Hot Dipped Galvanized Standard: GB
Color: Silver,Customize Transport: Pallet
High Light:

frame type scaffolding


ringlock scaffolding system

Product Description

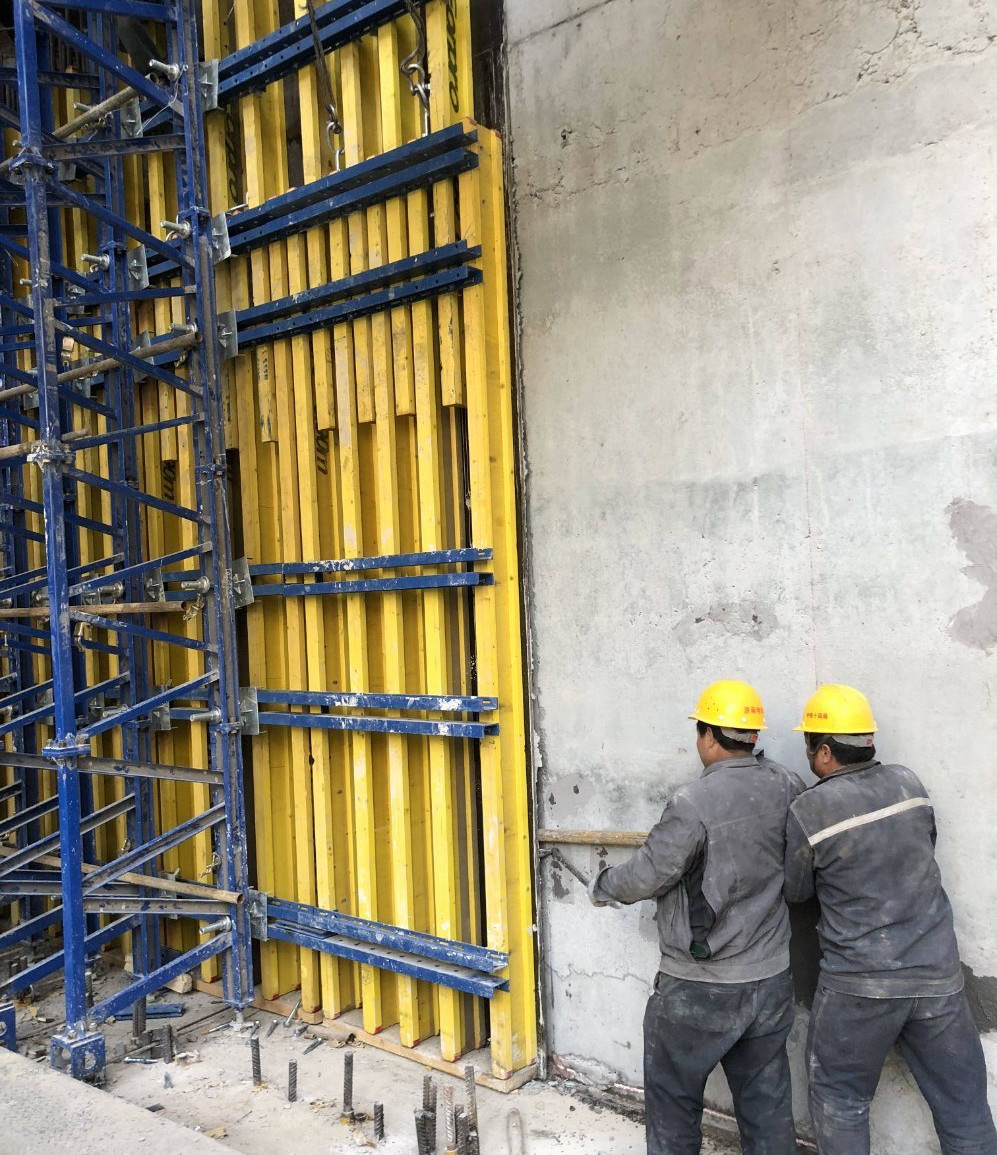

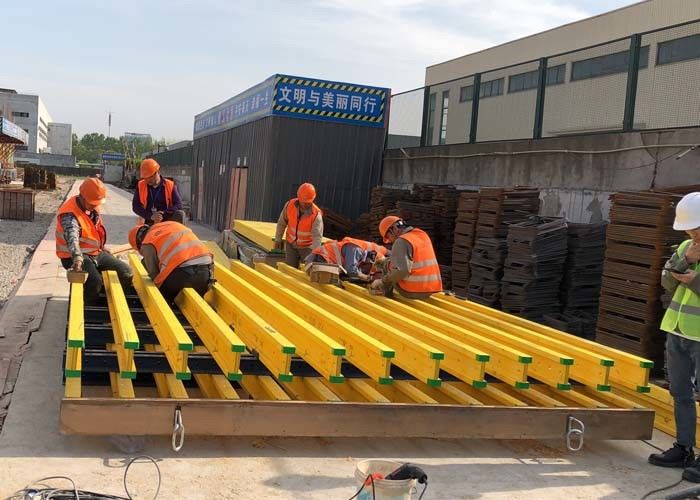

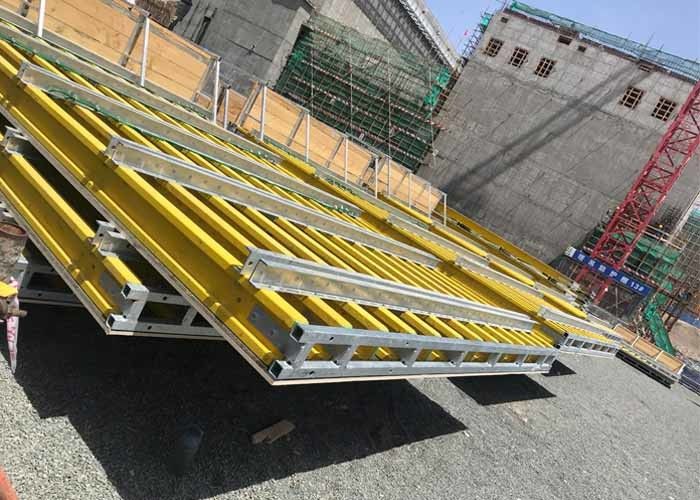

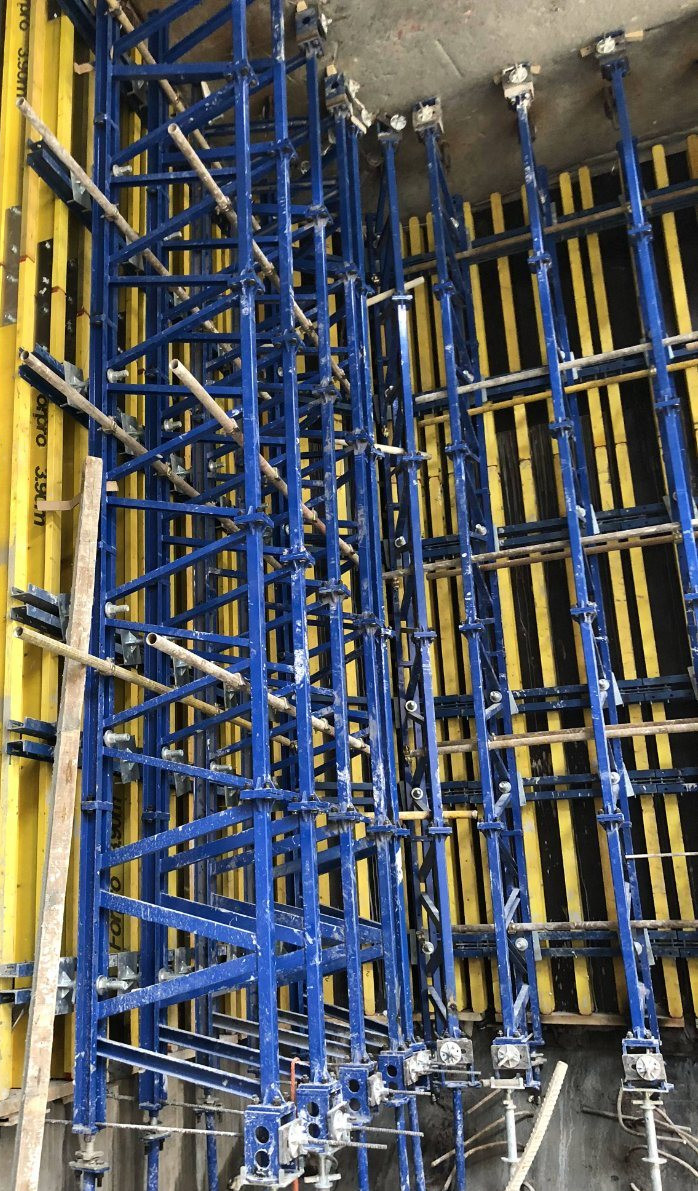

Large size panel system is a big dimension formwork panel system which is composed of H20 timber beam, film faced plywood and steel waler. This extraordinarily flexible and versatile formwork was designed by ForPro, which is able to provide an excellent concrete finish surface for any vertical


structure, including walls, piers and abutments.



1. Timber beam H20


2. Large size plywood


3. Steel waler


4. Connectiong accessories


Large Size Wall Formwork System with H20 Timber Beam Film Faced Plywood Steel Waler 0



Technical Specification


1.Plywood thickness is 18mm & 21mm, Max dimension is 2mx6m (Customized size).


2.timber beam height is 200mm, width is 80mm, length is 1m to 6m. Permitted bending moment is 5KN·m;permitted shear force is 11kN;


3.Steel waler is a welded double U profile 100 or 120, slot holes are drilled on the waler flange for universal application.




Product Name Large size wall formwork
Material Panels/ Timber beam/ Hoist ring/ Steel waler/ Platform/ Tie rod system/ Prop system
Max Width* Height Max 6m* 12m
Performance Can form any concrete shapes, size and be dimensioned to any concrete pressure
Application LNG tanks/ Dam/ High-rise building/ Bridge tower/ Nuclear project etc..
Components Waler connector/ Beam clamp/ Connecting pin/ Panel strut/ Spring cotter etc..





• Composed of wood and steel, lighter than steel fomwork;

• Convenient to modify, and environmentally friendly;

• Concrete surfaces have fewer pores because of film-faced plywood;

• Cost ecnomically due to reuse, safety when the concrete is being poured;

• Can be transfered into other formwork according to ForPro specially arranged solution.
