High Safety Slip Climbing Formwork System For High Silo Continuous Construction

Minimum Order Quantity : 100 pcs Packaging Details : Pallet
Delivery Time : 30-45 work days Payment Terms : L/C, T/T
Supply Ability : 10000 Pcs / year
Place of Origin: shanghai Brand Name: Forpro
Certification: ISO and CE Model Number: Slip climbing formwork system

Detail Information

Material: Q235 Steel, Cylinder, Wooden Plank Color: Blue Lacquer, Brown, Light Green,yellow
Size: 2m To 3m Per Day Climbing Speed Application: Silo, Cooling Tower,TV Tower,cement Plant, Raw Meal Silo, Testing Tower,chimney
Product Name: Slip Climbing Formwork CSF150 System Type: Climbing Formwork,Wall Formwork, Steel Formwork,Silo Formwork,Climbing Formwork
High Light:

crane climbing formwork

,

self climbing scaffold system

Product Description

Slip Climbing Formwork System for Continous Construction of High Silo and Cooling Tower



Product definition

Slip formwork is a climbing formwork specially designed for continous concreting along all height, Formwork and  platform is drived upword by hydraulic equipment, It's operation is indenpent of crane and weather. The slip climbing formwork is widely used in silo, cooling tower, chimney and tank projects. Standard climbing height each step is approx.1m, and formwok will be climbed up while concrete strength to 0.2 to 0.4Mpa.As a non-stop concreting climbing formwork , there is no horizontal concrete joint need to be treated on the jobsite and much time is saved. 2 group of workers need to be available for 24 hours's concreting per day. Enclosed handrail protection and platform is equiped and provide high safety enviroment for jobsite workers . 1.50m width of main platform and 0.85m width of suspension platform ensure speedy and safe formwork operation. Multi level platforms  provide orient work space for formwork operation, concrete pouring,reinforcement installation and concrete surface repairing. The whole system is anchored in the stucture during the whole working process.

Components

• External and internal operation platform

External and internal suspension platform

• Slip standard formwork

• Hydraulic cylinder and hydraulic unit and hydraulic line

• Adjustable lifting brackets

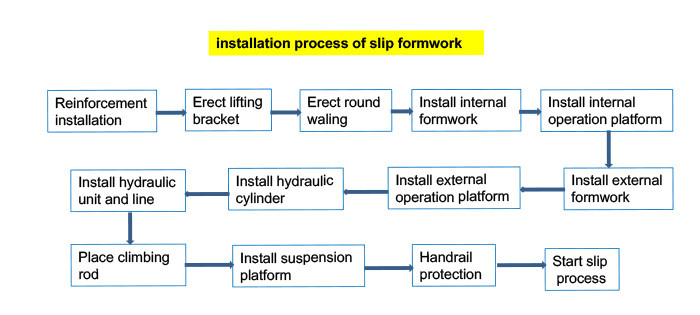

Advantage and Installation procedure

High efficiency and short construction period due to continuous concreting and no treatment of horizontal concrete joint

Better concrete surface due to no construction joint during whole process

High safety due to closed platform and handrail housing

• Universal components and could be reused to next projects

• Low costs

High Safety Slip Climbing Formwork System For High Silo Continuous Construction 0

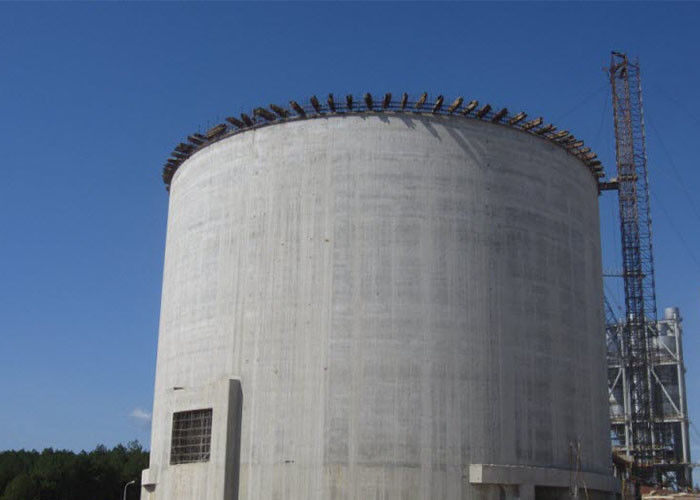

Applications Field

High Safety Slip Climbing Formwork System For High Silo Continuous Construction 1High Safety Slip Climbing Formwork System For High Silo Continuous Construction 2
