Lightest Climbing Formwork System for Crane Lifting With 1.6m Main Platform

Product Description

Description

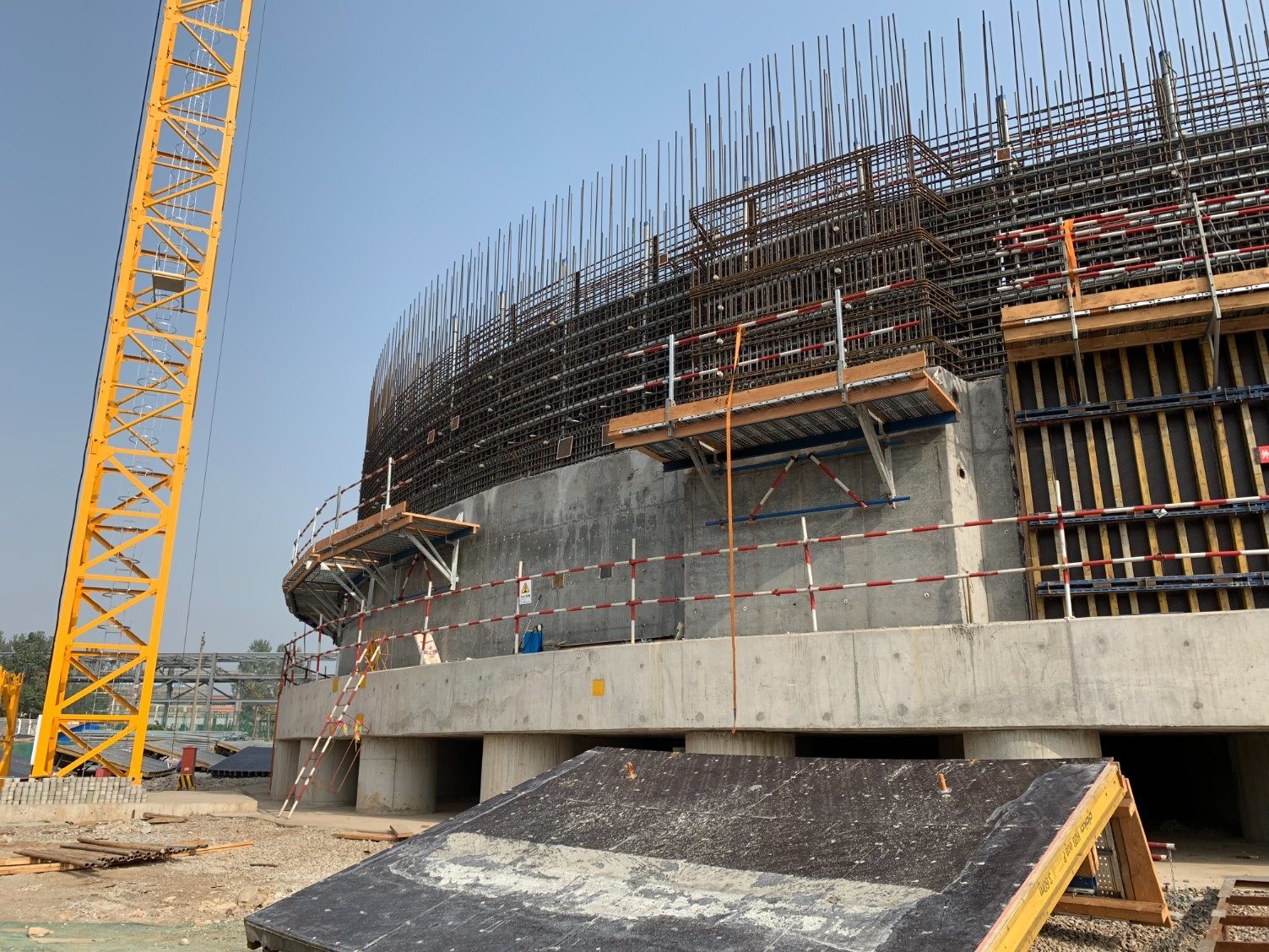

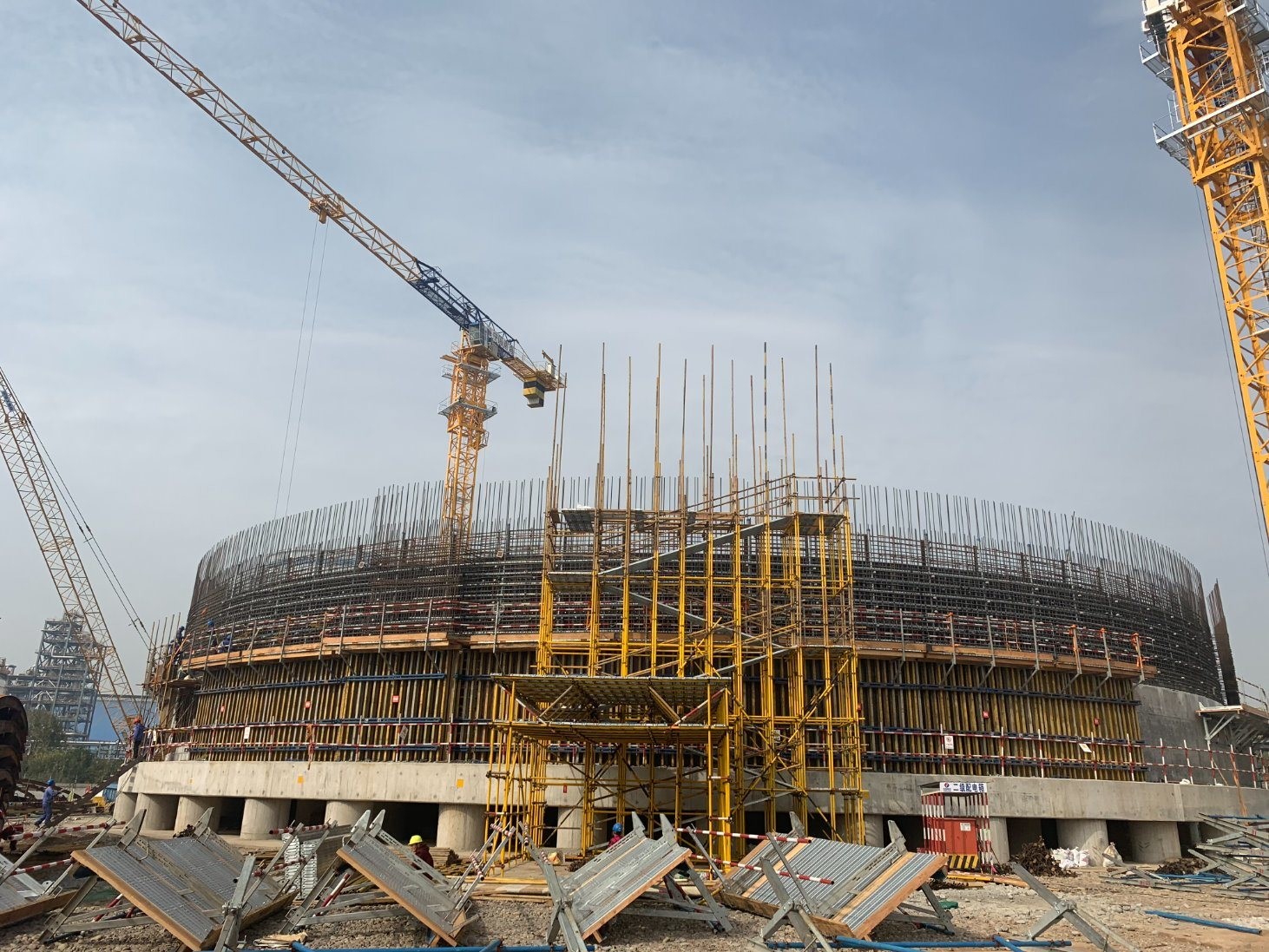

F16 climbing formwork is composed of ForPro large-size panel system, F16 climbing bracket system, anchoring system and platform system. It requires only a small tonnage crane to complete the overall lifting of templates and hangers, which not only greatly shortens the duration and reduces the difficulty of on-site construction, but also greatly increases the safety of site work.

Components

• F16 climbing bracket system

• Large-size panel system

• Platform system

Charactors

• Combination of forming wood and timber beam, any shape and any radius tank projects can be adapted.

• Only lower capacity crane lift to be equipped on the jobsite

• Permissible live load for main platform is 1.5kN/m²

• Min.required concrete strength in anchor point is 15kN

• Max.permissible vertical load is 45kN per bracket
