Modular Truss Single Sided Wall Formwork Manual Operation For Concrete Construction

Minimum Order Quantity : 100 Pcs Price : $120-180 /Pcs
Packaging Details : Pallet Delivery Time : 25-30 work days
Payment Terms : L/C, T/T Supply Ability : 100000 Pcs/ year
Place of Origin: shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Steel,H20 Timber Beam,Plywood,Aluminum Formwork Color: Blue, Yellow
Size: Handy Operation Weight: Light Weight
Feature: Modular Assembled, Single-sided, Fast Assembly Packing: Seaworthy Packing
Overseas After-sale Service: Available Market: South East Asia, Africa, Middle East Etc.
High Light:

one sided wall formwork

,

single sided concrete wall forms

Product Description

Manual Operation Light weight Single Sided Wall Formwork for Concrete Construction



Product outline

The Modular truss single-sided wall formwork is specially designed for wall structure where formwork can only be erected in one side. As a light weight single-sided wall formwork system, Concrete pressure will be transferred to foundation and top beam via truss brackets. to meet hand- operation and different casting height requirment, the truss bracket is designed to modular dimension.Truss could be hand-installed on the jobsite. For projects when crane is difficult to be set but formwork system need to take big fresh concrete pressure, this kind of hand-operation system is the best option for single sided wall concreting. Timber beam large size panel will  be selected to work integrity with the truss bracket.



Elements

• Hand-operation modular light weight truss frame

• Hand-assemble large size panel system

No horizontal concrete joint due to customized large size plywood

• High strength snake-like tie rod



Technical Specification

• Modular manual truss standard length is 1.20m

• Max casting height can reach to 7.0m

• Max concrete pressure is 40kN/m2

• Max loadability of snake-like tie rod is 250kN

• Each project need engineers' calculation check for safety application

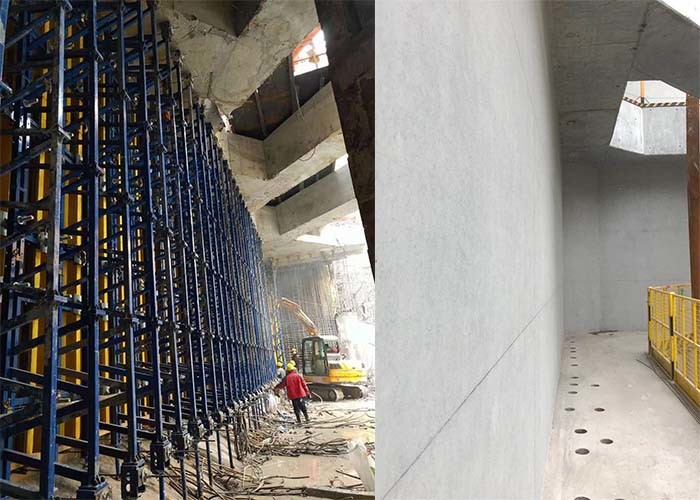

Application



Modular Truss Single Sided Wall Formwork Manual Operation For Concrete Construction 0


service process

Modular Truss Single Sided Wall Formwork Manual Operation For Concrete Construction 1
