Modular Single Sided Wall Formwork For Building Construction

Product Details:
Place of Origin: shanghai
Brand Name: ForPro
Certification: ISO and CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 80m
Price: $1400-1600 /m
Packaging Details: Pallet
Delivery Time: 25-30 work days
Payment Terms: L/C, T/T
Supply Ability: 100000m/ year

Detail Information

Material: Steel,H20 Timber Beam,Plywood,Aluminum Formwork Color: Yellow,Blue Or Customized
Size: Customized Weight: 100kg/m2
Application: Building Construction Product Name: Single-side Climbing Concrete Formwork
High Light:

Building Construction Single Sided Wall Formwork

,

Modular Single Sided Wall Formwork

Product Description



One Sided Wall Formwork System for underground Structure Concreting construction





quick detail



Single-side bracket is a kind of formwork for the concrete pouring of single-side wall. The construction is easy and fast. The components have good standard performance and versatility. The pouring height is adjustable, the maximum height of a single pouring is 8m.



The formwork is always used in the concrete pouring of basement, subway, sewage treatment factory, culvert, retaining wall and so on. The finished wall is excellent and absolutely waterproof.



Elements



• Supporting bracket system include

—basic supporting bracket 4.5m

—basic supporting bracket 5.5m

—heightened supporting bracket

• Forpro large size panel system

Thanks to large dimension of single plywood, there is no horizontal plywood joint for each single wall formwork unit.

• Anchoring system

High strength snakelike anchor is applied to guarantee high loadability and small elongation of the anchor rod.



Technical Specification



Casting height can reach to 4.5m with basic supporting bracket 4.5m

Casting height can reach to 5.5m with basic supporting bracket 5.5m

Casting height can reach to 8.0m with combination of differenc support bracketing

Permitted max concrete pressure is 50KN/m2, special calculation needs to be executed if bigger concrete pressure is required.

Working platform width is 750mm and permitted live load is 1.5KN/m2.

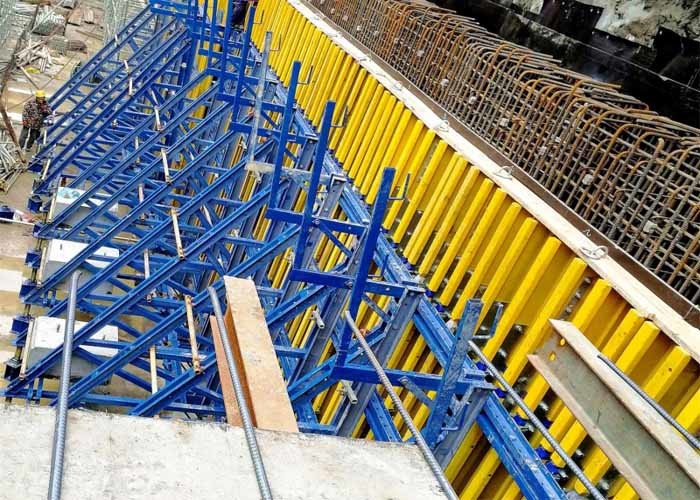

Modular Single Sided Wall Formwork For Building Construction 0





Package and tranportation

Modular Single Sided Wall Formwork For Building Construction 1Modular Single Sided Wall Formwork For Building Construction 2
